What is the difference between a single-phase and a three-phase installation?

Although both serve to deliver energy to your sockets, their internal architecture is different. The fundamental difference lies in the number of alternating currents carrying the electricity.

How current is distributed in each one

In a single-phase installation, energy flows through a single phase or alternating current. It is the standard system where all the power capacity flows through the same channel. Conversely, a three-phase installation divides the power into three separate currents or phases that distribute the load equally.

What is normally used in a home

In Spain, homes and apartments usually have a single-phase installation. This system is the most efficient for covering standard domestic needs, whether for a small flat or a large detached house. Three-phase systems are generally reserved for commercial buildings, factories, or homes with very specific technical requirements.

What changes in power, load balancing and connected equipment

The informative framework of the Low Voltage Electrotechnical Regulations (REBT) sets the standard voltage at 230 V for single-phase installations, while three-phase networks operate at 400 V between phases.

With a single-phase supply, you can contract a power capacity of up to 14.49 kW, which is extremely high for a household. The challenge with a three-phase supply is load balancing: the power capacity is divided across the three phases. If you have a contracted capacity of 15 kW, you have 5 kW available per phase. If you connect an appliance that consumes 6 kW to just one of them, the circuit breaker will trip due to an overload on that specific phase, even if the other two are inactive.

How to know if your installation is single-phase or three-phase

Identifying your system does not require engineering knowledge; a visual and document inspection is enough.

Looking at the consumer unit

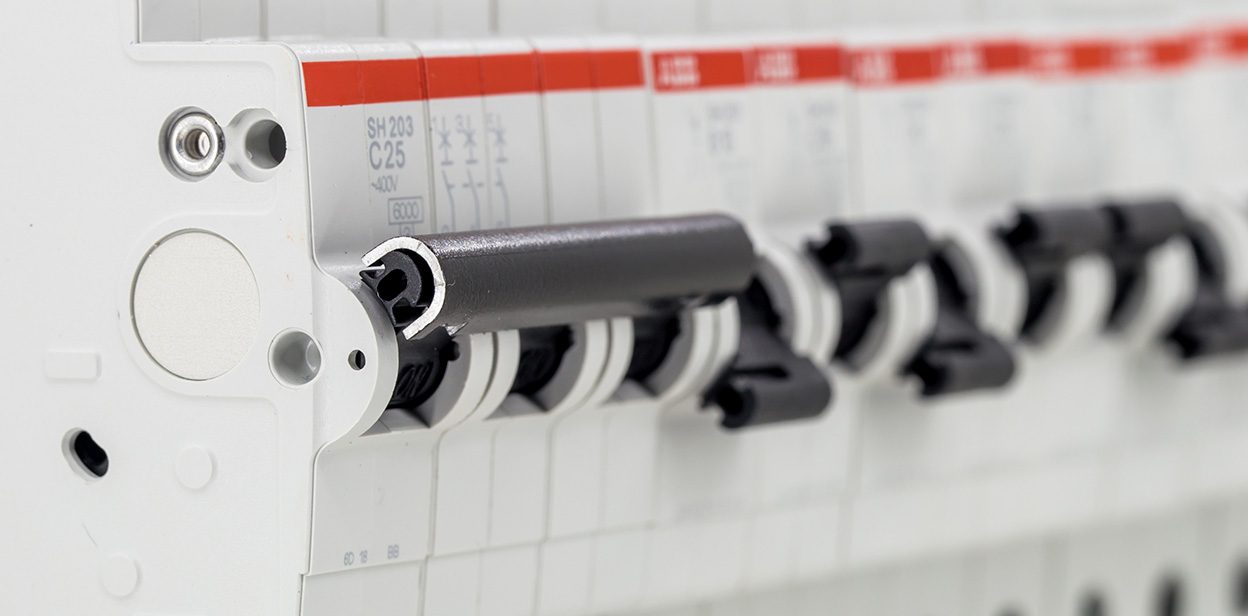

This is the most direct method. The control and protection panel (consumer unit) is usually located near the front door and is the first place you should look. The layout of the switches will give you the key answer immediately.

Checking the electrical certificate or CIE

If the visual inspection leaves you with doubts, the Electrical Installation Certificate (CIE) is your second major resource. This technical document is the 'ID card' of your installation, and it must specify whether the system is single-phase or three-phase, alongside the maximum allowable power. To learn more about this document, you can consult our guide on the Electrical certificate: what it is, how much it costs, and when you need the CIE.

When you should consult an authorised installer

If your consumer unit is very old or you notice your electricity tripping without any apparent excess consumption, an authorised installer can carry out precise measurements. This is highly recommended before making major renovations or installing air source heat pumps and solar panels.

The fastest way to identify it in the consumer unit

To clear up any doubts in seconds, open the cover of your consumer unit and look at the Power Control Switch (ICP) or the Main Circuit Breaker (IGA).

What seeing double devices means

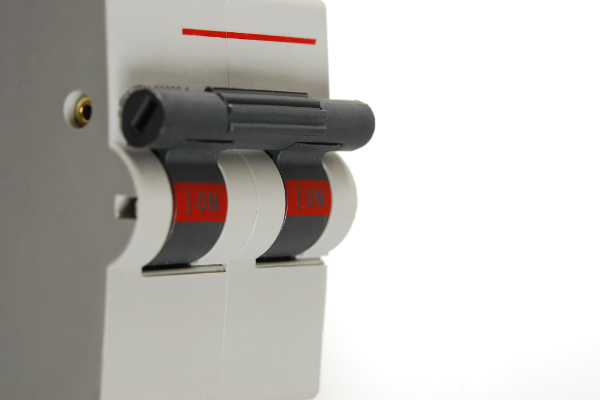

If you look at the switches and see that the parts consist of double devices (two connected switches or a two-element block), you have a single-phase installation. This means you have one phase and one neutral supplying your home. To better understand each component, we recommend reading our article 'Decoding your home’s consumer unit'.

What signs might indicate a three-phase system

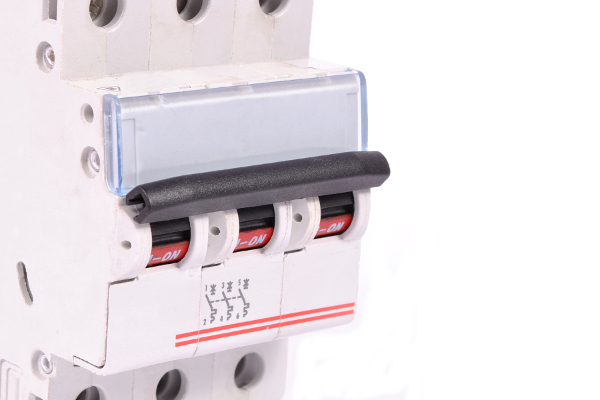

If the main switch is noticeably wider and features a triple or larger device (three or four connected switches), you have a three-phase installation. This design allows the passage of the three alternating currents characteristic of this system.

What you should not touch to check it

Remember that this check is strictly visual. Do not attempt to remove the consumer unit's protective cover or touch the internal wiring. Safety comes first, and any handling of the terminals must be carried out by a qualified professional.

How to check it on the electrical certificate

The certificate is the ultimate source of truth when the consumer unit is confusing.

Where the type of installation appears

In the technical characteristics section of the CIE, you will see a box indicating the type of current and the number of phases. If it says 1x230V, it is single-phase; if it says 3x400V, it is three-phase.

Why the CIE is key if you are making changes

The CIE is essential when making technical modifications, such as switching from three-phase to single-phase. Furthermore, according to current regulations published in the BOE (Official State Gazette), this document must be reviewed or renewed if it is over 20 years old and you wish to make a change to your supply contract.

What to do if you do not have it or it is old

If you cannot find your certificate, you can request a copy from your distribution company. If it is old and you are planning a comprehensive renovation or installing an electric vehicle charger, the installer will need to issue a new one after verifying that the installation complies with current legal safety standards.

What having a single-phase or three-phase installation entails

Having one or the other influences your consumption decisions and how your equipment is set up.

How it affects your power capacity

With a single-phase supply, managing your power is more flexible. With a three-phase supply, because the power is divided, the circuit breakers are more likely to trip if you do not balance your appliance usage properly. If you are wondering whether your power level is right, check out 'What power should I contract?' to optimise your expenses.

What happens if you are going to install high-consumption equipment

For standard domestic consumption, a single-phase system is ideal. A three-phase system usually only makes sense if you are installing industrial machinery, powerful lifts, or large-scale heat pumps that require 400 V to operate properly.

When it can influence renovations or new machinery

Identifying your installation is vital during a renovation. Many homeowners with old three-phase installations choose to switch to single-phase to simplify the system and reduce the fixed power charge on their bill, as most modern appliances are single-phase.

Can you switch from single-phase to three-phase, or vice versa?

It is possible, but it is important to separate identifying your installation from changing it. Knowing what you have is informative; changing it is a regulated technical procedure.

When it makes sense to consider it

Switching to single-phase makes sense to save on your bill if you do not have equipment that requires three phases. Conversely, switching to three-phase is only considered in cases of extreme power needs or highly specific machinery.

What paperwork and documentation are typically involved

Any change of this type requires a new CIE, as it is considered a technical modification to the existing installation. You will need to arrange this through an authorised installer who can certify the new setup.

Cost of changing power and potential technical work

Changing your power or installation type involves regulated costs (access, extension, and connection fees) that the distribution company charges on your bill. To find out more about the detailed process, take a look at our article: 'How to change your agreed power capacity'.

What is usually best for a home

In this case, and in most instances, less is more.

Cases where single-phase is usually enough

For 95% of households, single-phase is the best option. It perfectly supports the simultaneous use of an oven, washing machine, air conditioning, and small appliances without the complications of phase balancing.

When a three-phase system might make sense

Only if the property is exceptionally large with industrial climate control systems, or if it requires more power than the 14.49 kW permitted by a single-phase system.

Common mistakes when thinking 'more phases are better'

A common mistake is believing that a three-phase installation is 'more powerful' or automatically more modern. For a domestic user, it often means paying for power they cannot properly utilise due to phase imbalances, making their monthly bill more expensive.

FAQ

Some of the questions you might be most curious about are the following:

How do I know if I have three-phase electricity?

The clearest sign is in your consumer unit: if the main switch (ICP or IGA) has three or four connected switches, you have three-phase electricity.

Does the bill state it clearly?

Not always directly. Sometimes the word 'Power' is followed by the voltage (e.g., 3x400V for three-phase), or simply the power capacity band is shown.

Can I have high power and still be single-phase?

Yes, current single-phase installations allow you to contract up to 14.49 kW, which is more than enough even for large homes with air source heat pumps.

Does switching from single-phase to three-phase require a certificate?

Yes. As it is a substantial technical modification, an installer must issue a new Electrical Installation Certificate (CIE) to reflect the change.

What happens if I don't know what installation I have and want to install an EV charger or air source heat pump?

It is not an obstacle. An installer will check your consumer unit and your CIE before getting started. It is worth noting that, according to the Horizontal Property Act (Art. 17.5), installing a charging point in an individual garage parking space only requires prior notification to the residents' association. Having this infrastructure, along with a legal and up-to-date installation, not only facilitates electric mobility but also increases your property's appeal and unique value on the market. To supplement your knowledge of new technologies, you can read up on smart meters to understand how your new consumption is measured.
